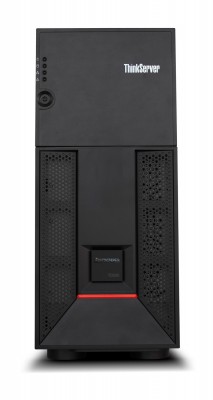

  serwer Lenovo ThinkServer TD230 Intel Quad Core Xeon Processor E5507 2.26 GHz, 4GB DDR3 ECC RDIMM, 4 x 3.5" SAS/SATA, Integrated RAID Controller (0, 1, 10), DVD-RW, 1x625W, Tower

  P/N: 102912U
  EAN: 0885600439562
  Manufacturer: Lenovo

  Ask our experts about:

  - the equivalent of a third-party
  - The same product in a different than the new state (eg, refurbished)
  - Other / alternative solution



  Availability


  Ask the merchant

  Price and flexible funding

  • Price
  • Negotiations
  • Reseller

  Net price:

  Available on call

  Negotiate the price if:

  - you don't fit in your budget
  - you buy more than one piece
  - you are our regular customer
  - to check how flexible our prices are!



  Find out about our
  pricing

  Are you a Reseller?

  We can offer you additional benefits and long-term cooperation! Contact us for more details !




  Help Zone

  GRATIS

  Consultations

  Call us: +48 71 738 25 31

  Mail us: office@112it.com

  > we'll advise you in your selection
  > we'll rescue your IT project
  > we'll search the whole world for you!


  Adjust further:

  • Options

  Think about selecting the option for the equipment you wish to purchase.

  portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

  Additional information

  • Specification
  • Description
  • Compatible

  Other features	Disk array controller	ICH10R
  Technical details	Ventilation fan(s)	5
  	Chassis type	Tower
  Certificates	Certification	RoHS
  Operating system/software	Operating system installed	Nie
  	Compatible operating systems	-
  Weight & dimensions	Depth	510 millimeter
  	Height	470 millimeter
  	Width	210 millimeter
  Power	Power supply	625 Watt
  	Power supply input frequency	50/60 Hertz
  	Number of power supply units	1
  	Redundant power supply (RPS) support	Nie
  Expansion slots	PCI slots	1
  	PCI Express x8 slots	3
  	PCI Express x4 slots	1
  Ports & interfaces	PS/2 ports quantity	0
  	VGA (D-Sub) ports quantity	1
  	Parallel ports quantity	0
  	Ethernet LAN (RJ-45) ports	2
  	Serial ports quantity	1
  	Firewire (IEEE 1394) ports	0
  	DisplayPorts quantity	0
  	FireWire 800	Nie
  	Mini DisplayPort quantity	0
  	USB 2.0 ports quantity	6
  Networking	Ethernet LAN	Tak
  	Network ready	Tak
  Optical drive	Optical drive type	DVD-RW
  Graphics	Maximum graphics adapter memory	32 megabyte
  Memory	Memory slots	8
  	ECC	Tak
  	Memory clock speed	1333 megahertz
  	Internal memory type	DDR3-SDRAM
  	Maximum internal memory	32 gigabyte
  	Internal memory	4 gigabyte
  Storage	Number of hard drives supported	5
  	Maximum storage capacity	10 TeraByte
  	RAID levels	0, 1, 10
  	RAID support	Tak
  	Hard drive interface	Serial ATA
  	Hard drive size	3.5 inch
  	Total storage capacity	0 gigabyte
  	Number of hard drives installed	0
  Processor	Processor manufacturer	Intel
  	Processor front side bus	800 megahertz
  	Processor socket	Socket B (LGA 1366)
  	Motherboard chipset	Intel 5500
  	System bus rate	4.8 Gigatranfers per second
  	L3 cache	4 megabyte
  	Number of processors installed	1
  	Processor cores	4
  	Processor model	E5507
  	Processor family	Intel Xeon
  	Processor clock speed	2.26 gigahertz

  102912U

  Collapse all categories



  • Lenovo
  • options
  • controllers




  Part Number	Name	Price	Availability

  67Y1393	Lenovo PRO/1000 PT Dual Port Ethernet Adapter by Intel	Available on call	Ask the merchant	Add to query
  67Y1459	Lenovo ThinkServer TD230 SATA RAID 5 Upgrade	Available on call	Ask the merchant	Add to query
  90Y1611	ThinkServer RAID 500 Adapter (RAID levels 0, 1, 10)	Available on call	Ask the merchant	Add to query
  46U3464	Lenovo ThinkServer 9240-8i SAS/sATA RAID Adapter	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • power supply




  Part Number	Name	Price	Availability

  46U3201

  Power supply, Delta 625 W PSU

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • options
  • network cards




  Part Number	Name	Price	Availability

  67Y1430

  Intel PRO/1000PT Dual Ports Ethernet Card

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • options
  • RSA, VMK, KVM, server management




  Part Number	Name	Price	Availability

  67Y1461

  zarządzania Lenovo ThinkServer Remote Management Module 3 by Intel

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • options
  • software, licenses




  Part Number	Name	Price	Availability

  90Y1174	Windows Server 2008 SBS SP2 Standard 64bit US	Available on call	Ask the merchant	Add to query
  90Y1176	Windows Server 2008 SBS SP2 Standard 64bit FR	Available on call	Ask the merchant	Add to query
  90Y1177	Windows Server 2008 SBS SP2 Standard 64bit GR	Available on call	Ask the merchant	Add to query
  90Y1178	Windows Server 2008 SBS SP2 Standard 64bit IT	Available on call	Ask the merchant	Add to query
  90Y1180	Windows Server 2008 SBS SP2 Standard 64bit SP	Available on call	Ask the merchant	Add to query
  90Y1183	Windows Server 2008 R2 Standard 64bit US	Available on call	Ask the merchant	Add to query
  90Y1184	Windows Server 2008 R2 Standard 64bit FR	Available on call	Ask the merchant	Add to query
  90Y1185	Windows Server 2008 R2 Standard 64bit GR	Available on call	Ask the merchant	Add to query
  90Y1187	Windows Server 2008 R2 Standard 64bit SP	Available on call	Ask the merchant	Add to query
  90Y1188	Windows Server 2008 R2 Standard 64bit IT	Available on call	Ask the merchant	Add to query
  90Y1191	Windows Server 2008 R2 Enterprise 64bit US	Available on call	Ask the merchant	Add to query
  90Y1193	Windows Server 2008 R2 Enterprise 64bit FR	Available on call	Ask the merchant	Add to query
  90Y1194	Windows Server 2008 R2 Enterprise 64bit GR	Available on call	Ask the merchant	Add to query
  90Y1195	Windows Server 2008 R2 Enterprise 64bit IT	Available on call	Ask the merchant	Add to query
  90Y1197	Windows Server 2008 R2 Enterprise 64bit SP	Available on call	Ask the merchant	Add to query
  90Y1182	Windows Server 2008 SBS SP2 Premium 64bit US	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • cables




  Part Number	Name	Price	Availability

  46U3582	Front USB cable	Available on call	Ask the merchant	Add to query
  46U3590	12-pin LED/SW cable	Available on call	Ask the merchant	Add to query
  41R3184	Line Cord - US	Available on call	Ask the merchant	Add to query
  41R3256	Line Cord - China	Available on call	Ask the merchant	Add to query
  41R3270	Line Cord - Brazil	Available on call	Ask the merchant	Add to query
  41R3176	Line Cord - LA High Volt (APU)	Available on call	Ask the merchant	Add to query
  41R3260	Line Cord - Korea	Available on call	Ask the merchant	Add to query
  41R3224	Line Cord - Hong Kong,UK, Ireland, Singapore, Malaysia, Brunei, Hong Kong	Available on call	Ask the merchant	Add to query
  41R3278	Line Cord - Taiwan	Available on call	Ask the merchant	Add to query
  41R3232	Line Cord - Italy	Available on call	Ask the merchant	Add to query
  41R3208	Line Cord - A models	Available on call	Ask the merchant	Add to query
  41R3212	Line Cord - Denmark	Available on call	Ask the merchant	Add to query
  41R3228	Line Cord - Switzerland	Available on call	Ask the merchant	Add to query
  41R3236	Line Cord - Israel	Available on call	Ask the merchant	Add to query
  41R3220	Line Cord - South Africa	Available on call	Ask the merchant	Add to query
  43N9029	Line Cord - Thailand	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • memory
  • DDR 3




  Part Number	Name	Price	Availability

  46U3442	2GB DDR3 RDIMM 1333MHz	Available on call	Ask the merchant	Add to query
  46U3443	RAM Lenovo 4GB DDR3 RDIMM 1333MHz	Available on call	Ask the merchant	Add to query
  46U3193	RAM 2GB DDR3 LV RDIMM	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • optic drives




  Part Number	Name	Price	Availability

  46U3191	DVD-ROM Drive - 16x/48x SATA - with No Software (DOS/Linux)	Available on call	Ask the merchant	Add to query
  46U3206	DVD Burner/CD-RW SATA - with No Software (DOS/Linux)	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • disk drives
  • 3,5in SATA SAS




  Part Number	Name	Price	Availability

  46U3100	Hard disk drive, 250GB SATA, Enterprise 7200 rpm, 3 Gb/s, 8MB cache, 3.5	Available on call	Ask the merchant	Add to query
  46U3101	Hard disk drive, 500GB SATA, Enterprise 7200 rpm, 3 Gb/s, 16MB cache, 3.5	Available on call	Ask the merchant	Add to query
  46U3103	Hard disk drive, 1TB SATA, Enterprise 7200 rpm, 3 Gb/s, 32MB cache, 3.5	Available on call	Ask the merchant	Add to query
  46U3572	Lenovo ThinkServer 300GB 6Gbps 15K 3.5" SAS Hot-Swap hard drive	Available on call	Ask the merchant	Add to query
  46U3573	Lenovo ThinkServer 450GB 6Gbps 15K 3.5" SAS Hot-Swap hard drive	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • processors
  • Intel Xeon 5500 Series




  Part Number	Name	Price	Availability

  71Y9029	Intel Xeon E5503 - Dual Core 2.00GHz - 4.8 QPI, 4MB Cache, DDR3-800, 80W	Available on call	Ask the merchant	Add to query
  46R6632	Intel Xeon E5506 - Quad Core 2.13GHz - 4.8QPI, 4MB Cache, DDR3-800, 80W	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • processors
  • Intel Xeon 5600 Series




  Part Number	Name	Price	Availability

  46U3187	Intel Xeon L5609 - Quad Core 1.86GHz - 5.86QPI, 12MB Cache, DDR3-1333, 40W	Available on call	Ask the merchant	Add to query
  71Y9037	Intel Xeon X5670 - Quad Core 2.93GHz - 6.4QPI, 12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query
  71Y9039	Intel Xeon X5667 - Quad Core 3.06GHz - 6.4QPI, 12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query
  71Y9045	Intel Xeon E5640 - Quad Core 2.66GHz - 5.86QPI, 12MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  71Y9041	Intel Xeon X5660 - Quad Core 2.80GHz - 6.4QPI, 12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query
  71Y9043	Intel Xeon X5650 - 6 Core 2.66GHz - 6.4QPI, 12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query
  71Y9047	Intel Xeon E5630 - Quad Core 2.53GHz - 5.86QPI, 12MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  71Y9049	Intel Xeon E5620 - Quad Core 2.40GHz - 5.86QPI, 12MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  71Y9031	Intel Xeon E5507 - Quad Core 2.26GHz - 4.8QPI, 4MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  03x3645	Intel Xeon E5603 - Quad Core 1.6GHz - 4.8QPI, 4MB Cache, DDR3-800, 80W	Available on call	Ask the merchant	Add to query
  03x3646	Intel Xeon E5606 - Quad Core 2.13GHz - 4.8QPI, 4MB Cache,DDR3-800, 80W	Available on call	Ask the merchant	Add to query
  03x3647	Intel Xeon E5607 - Quad Core 2.26GHz - 4.8QPI, 4MB Cache,DDR3-800, 80W	Available on call	Ask the merchant	Add to query
  03x3648	Intel Xeon E5645 - 6 Core 2.4GHz -5.86QPI,12MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  03x3649	Intel Xeon E5649 - 6 Core 2.53GHz -5.86QPI,12MB Cache, DDR3-1066, 80W	Available on call	Ask the merchant	Add to query
  03x3650	Intel Xeon X5675 - 6 Core 3.06GHz -6.4QPI,12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query
  03x3651	Intel Xeon X5672 - 4Core 3.2GHz -6.4QPI,12MB Cache, DDR3-1333, 95W	Available on call	Ask the merchant	Add to query




  • Lenovo
  • monitors




  Part Number	Name	Price	Availability

  5047HB2	Lenovo ThinkVision L1711p Monitor (17-inch, VGA+DVI, 1280×1024, TCO 5.0)	Available on call	Ask the merchant	Add to query
  4434HE1	Lenovo ThinkVision L197 Wide (19-inch, VGA+DVI,1440×900, TCO'03)	Available on call	Ask the merchant	Add to query
  2448HC6	Lenovo ThinkVision L1951p Wide (19-inch, VGA+DVI, 1440×900, TCO 5.0)	Available on call	Ask the merchant	Add to query




  • IBM
  • options
  • other




  Part Number	Name	Price	Availability

  06P4069

  IBM USB Optical Wheel Mouse

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • other




  Part Number	Name	Price	Availability

  0A89423	GIGABIT ETH DUALPORTSERVER	Available on call	Ask the merchant	Add to query
  0A89407	RAID 500 UPGRADE KEY	Available on call	Ask the merchant	Add to query
  55Y9003	USB KEYBOARD WITH TRACKPOINT U	Available on call	Ask the merchant	Add to query
  73P5220	Lenovo Preferred Pro Keyboard USB - US English 103P	Available on call	Ask the merchant	Add to query
  46U3570	Cable Asm 790mm, SATA	Available on call	Ask the merchant	Add to query
  03X3605	FRU Backplane	Available on call	Ask the merchant	Add to query
  46U3591	Screw Kit	Available on call	Ask the merchant	Add to query
  46U3580	IO shield	Available on call	Ask the merchant	Add to query
  46U3584	5.25" Metal Blank Bezel	Available on call	Ask the merchant	Add to query
  46U3588	Front Panel	Available on call	Ask the merchant	Add to query
  71Y5543	DVD-ROM Drive - 16x/48x (SATA)	Available on call	Ask the merchant	Add to query
  46U3225	S/W RAID 5 activation key for Intel® Embedded Server RAID Technology II	Available on call	Ask the merchant	Add to query
  46U3229	Intel® Remote Management Module 3	Available on call	Ask the merchant	Add to query
  67Y1424	Lenovo RDX Drive Bay	Available on call	Ask the merchant	Add to query
  67Y1425	Lenovo RDX Cables	Available on call	Ask the merchant	Add to query
  67Y1421	Lenovo RDX 160GB Cartridge	Available on call	Ask the merchant	Add to query
  67Y1422	Lenovo RDX 320GB Cartridge	Available on call	Ask the merchant	Add to query
  67Y1423	Lenovo RDX 500GB Cartridge	Available on call	Ask the merchant	Add to query
  90Y1460	Documentation DVD	Available on call	Ask the merchant	Add to query
  91Y1652	Documentation DVD (ML)	Available on call	Ask the merchant	Add to query
  03x3602	EasyStartup (ML)	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • trays
  • 3.5in




  Part Number	Name	Price	Availability

  46U3231	Karrie LX-12A hard disk drive tray (black)	Available on call	Ask the merchant	Add to query
  46U3579	Non Hot Swap HDD Tray (SATA)	Available on call	Ask the merchant	Add to query




  • Lenovo
  • options
  • płyty główne




  Part Number	Name	Price	Availability

  46U3223

  System board, Bluff Creek, Dual Xeon 5500 Series, LGA 1366 sockets

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • options
  • radiatory do procesorów




  Part Number	Name	Price	Availability

  46U3226

  Processor Heat Sink GBM, 40/80/95W

  Available on call

  Ask the merchant

  Add to query




  • Lenovo
  • options
  • wentylatory




  Part Number	Name	Price	Availability

  46U3228	9225 System Fan	Available on call	Ask the merchant	Add to query
  46U3197	12025 System Fan	Available on call	Ask the merchant	Add to query







  Please note that despite all efforts to the specification may be out of date, and posted pictures do not always correspond to the actual appearance of the product.
